บทนำ
Doxygen เป็นเครื่องมือมาตรฐานสำหรับสร้างเอกสารจากซอร์สโค้ด C++ ที่มีคำอธิบาย (Annotated) นอกจากนี้ยังรองรับภาษาโปรแกรมมิ่งยอดนิยมอื่นๆ เช่น C, Objective-C, C#, PHP, Java, Python, IDL, Fortran, VHDL และ Tcl บทความนี้อธิบายเกี่ยวกับ "วิธีติดตั้ง Doxygen บน Ubuntu"
การติดตั้ง
ใช้คำสั่งต่อไปนี้เพื่อติดตั้ง Doxygen:
$ sudo apt-get install doxygen
ตัวอย่างผลลัพธ์การติดตั้ง
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following packages were automatically installed and are no longer required:
libterm-readkey-perl linux-headers-4.4.0-31 linux-headers-4.4.0-31-generic
linux-image-4.4.0-31-generic linux-image-extra-4.4.0-31-generic
linux-signed-image-4.4.0-31-generic
Use 'sudo apt autoremove' to remove them.
The following additional packages will be installed:
libclang1-3.6 libllvm3.6v5 libobjc-5-dev libobjc4
Suggested packages:
doxygen-latex doxygen-doc doxygen-gui graphviz
The following NEW packages will be installed:
doxygen libclang1-3.6 libllvm3.6v5 libobjc-5-dev libobjc4
0 upgraded, 5 newly installed, 0 to remove and 26 not upgraded.
Need to get 15.9 MB of archives.
After this operation, 64.0 MB of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 https://in.archive.ubuntu.com/ubuntu xenial/main amd64 libllvm3.6v5 amd64 1:3.6.2-3ubuntu2 [8,075 kB]
Get:2 https://in.archive.ubuntu.com/ubuntu xenial-updates/main amd64 libobjc4 amd64 5.4.0-6ubuntu1~16.04.4 [111 kB]
Get:3 https://in.archive.ubuntu.com/ubuntu xenial-updates/main amd64 libobjc-5-dev amd64 5.4.0-6ubuntu1~16.04.4 [380 kB]
Get:4 https://in.archive.ubuntu.com/ubuntu xenial/main amd64 libclang1-3.6 amd64 1:3.6.2-3ubuntu2 [3,696 kB]
Get:5 https://in.archive.ubuntu.com/ubuntu xenial/main amd64 doxygen amd64 1.8.11-1 [3,679 kB]
......................................................................................
ดูข้อมูลเพิ่มเติม
ใช้คำสั่งต่อไปนี้เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับ Doxygen:
$ doxygen --help
ตัวอย่างผลลัพธ์
Doxygen version 1.8.11
Copyright Dimitri van Heesch 1997-2015
You can use doxygen in a number of ways:
1) Use doxygen to generate a template configuration file:
doxygen [-s] -g [configName]
If - is used for configName doxygen will write to standard output.
2) Use doxygen to update an old configuration file:
doxygen [-s] -u [configName]
3) Use doxygen to generate documentation using an existing configuration file:
doxygen [configName]
If - is used for configName doxygen will read from standard input.
4) Use doxygen to generate a template file controlling the layout of the generated documentation:
doxygen -l [layoutFileName.xml]
5) Use doxygen to generate a template style sheet file for RTF, HTML or Latex.
RTF: doxygen -w rtf styleSheetFile
HTML: doxygen -w html headerFile footerFile styleSheetFile [configFile]
LaTeX: doxygen -w latex headerFile footerFile styleSheetFile [configFile]
6) Use doxygen to generate a rtf extensions file
RTF: doxygen -e rtf extensionsFile
......................................................................
สร้างเอกสารจากซอร์สโค้ด
ใช้คำสั่งต่อไปนี้:
$ doxygen -g sample_text.conf
คำสั่งนี้จะสร้างไฟล์ชื่อ sample_text.conf ซึ่งมีเนื้อหาดังนี้:
# Doxyfile 1.8.11
# This file describes the settings to be used by the documentation system
# doxygen (www.doxygen.org) for a project.
#
# All text after a double hash (##) is considered a comment and is placed in
# front of the TAG it is preceding.
#
# All text after a single hash (#) is considered a comment and will be ignored.
# The format is:
# TAG = value [value, ...]
# For lists, items can also be appended using:
# TAG += value [value, ...]
# Values that contain spaces should be placed between quotes (" ").
#---------------------------------------------------------------------------
# Project related configuration options
#---------------------------------------------------------------------------
................................................................................
สร้างเอกสาร
ใช้คำสั่ง:
$ doxygen sample_text.conf
ตัวอย่างผลลัพธ์
Searching for include files... Searching for example files... Searching for images... Searching for dot files... Searching for msc files... Searching for dia files... Searching for files to exclude Searching INPUT for files to process... Searching for files in directory /home/linux warning: source /home/linux/.dbus is not a readable file or directory... skipping. Reading and parsing tag files Parsing files Preprocessing /home/linux/abc.txt... Parsing file /home/linux/abc.txt... Preprocessing /home/linux/bbc.txt... Parsing file /home/linux/bbc.txt... Building group list... Building directory list... Building namespace list... Building file list... Building class list... Associating documentation with classes... Computing nesting relations for classes... Building example list... Searching for enumerations... Searching for documented typedefs... Searching for members imported via using declarations... Searching for included using directives... Searching for documented variables... Building interface member list... ................................................................

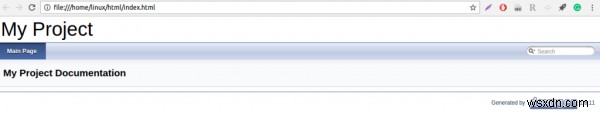

เปิดดูเอกสาร HTML
ใช้คำสั่ง:
$ cd html /html$ google-chrome index.html
หลังจากอ่านบทความนี้ คุณจะเข้าใจวิธีติดตั้ง Doxygen บน Ubuntu ในบทความต่อไป เราจะนำเสนอเคล็ดลับและเทคนิค Linux เพิ่มเติม โปรดติดตามอ่านต่อไป!
