Deaps (ดีป) ในโครงสร้างข้อมูล

Deap Definition

Deap = Data Structure ที่ Root Node ไม่มี Element/Key Value
สร้างตาม Rules:

  1. Root Node ว่าง (No Element)
  2. Left Subtree = Min Heap
  3. Right Subtree = Max Heap

Deaps (ดีป) ในโครงสร้างข้อมูล

Deap Property (Mathematical Correctness)

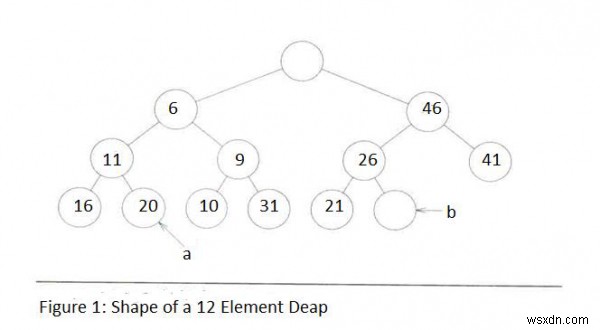

ถ้า Left/Right Subtrees ของ Node ใด Non-empty และ Corresponding Nodes = a (Left), b (Right) →

a.KeyValue ≤ b.KeyValue

ทุก Pair ของ Corresponding Nodes ระหว่าง Min/Max Heaps ต้อง Satisfy Property นี้

Operations

  • Find Min: Root ของ Left Subtree (b[2]) → O(1)
  • Find Max: Root ของ Right Subtree → O(1)
  • Insert: O(log n) - ใช้ min_value/max_value หา Corresponding Node
  • Delete Min/Max: O(log n) - Percolate Down + Cross-Subtree Adjustment

สรุป

Deap = Double-Ended Heap Using Two Embedded Heaps (Min + Max)
Root Empty, Left=Min Heap, Right=Max Heap
Corresponding Nodes Property: Min Key ≤ Max Key
