ในการสร้างกราฟแท่งแนวนอนที่เสียหายใน matplotlib เราสามารถทำตามขั้นตอนต่อไปนี้ -
- กำหนดขนาดรูปและปรับช่องว่างภายในระหว่างและรอบๆ แผนผังย่อย
- สร้างร่างและชุดแผนย่อย
- พล็อตลำดับของสี่เหลี่ยมแนวนอน
- จำกัดขนาดแกน X และ Y
- กำหนดค่าเส้นตาราง
- ใส่คำอธิบายประกอบแถบที่หัก
- หากต้องการแสดงรูป ให้ใช้ show() วิธีการ
ตัวอย่าง
import matplotlib.pyplot as plt
plt.rcParams["figure.figsize"] = [7.00, 3.50]
plt.rcParams["figure.autolayout"] = True
fig, ax = plt.subplots()
# Horizontal sequence of rectangles
ax.broken_barh([(110, 30), (150, 10)], (10, 9), facecolors='tab:blue')
ax.broken_barh([(10, 50), (100, 20), (130, 10)], (20, 9),
facecolors=('tab:orange', 'tab:green', 'tab:red'))
# Scale X and Y axes limits
ax.set_ylim(5, 35)
ax.set_xlim(0, 200)
# Configure the grid lines
ax.grid(True)
# Annotate the broken bars
ax.annotate('race interrupted', (61, 25),
xytext=(0.8, 0.9), textcoords='axes fraction',
arrowprops=dict(facecolor='black', shrink=0.05),
fontsize=16,
horizontalalignment='right', verticalalignment='top')
plt.show() ผลลัพธ์

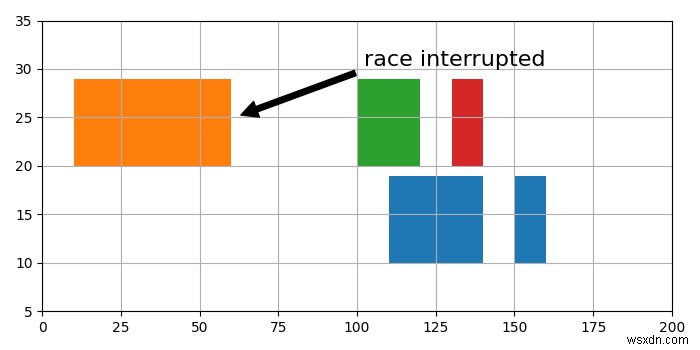

มันจะสร้างผลลัพธ์ต่อไปนี้
